HANGING ROPE BRIDGE
Manufacturer:
Billabong Playgrounds
Equipment Size:
Custom
Age Range:
N/A
Fall Zone:
N/A

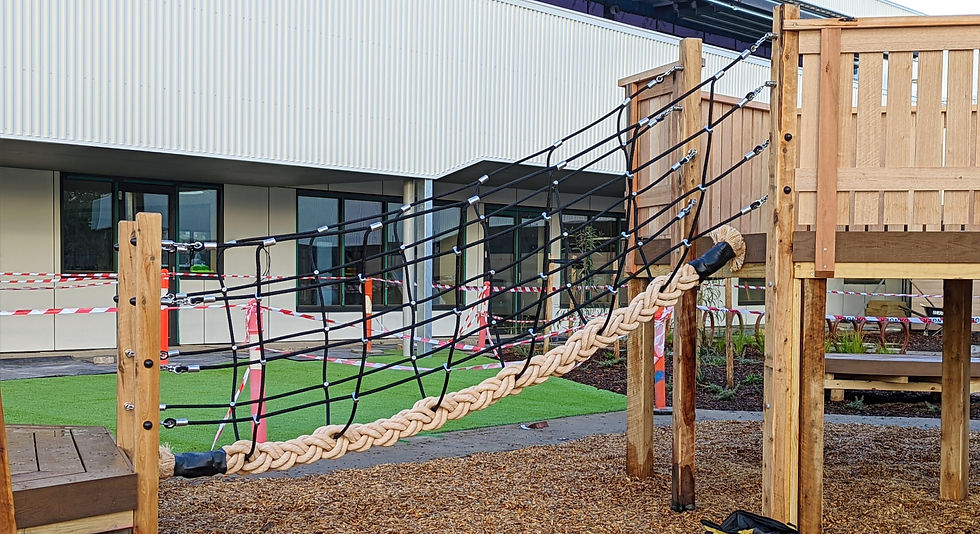

The hanging rope bridge is a custom built bridge that can be fitted to an existing structure, or can be easily incorporated into your playground during the design phase. It is made from 3 different types of rope. With the two supporting handrail ropes made from a steel cable/nylon composite to ensure safety and to vandal proof the supporting structure of the bridge.
MATERIALS
80-100mm diameter manila base rope, with 12mm galvanized steel cable core and hydraulically pressed eye attachment points. Braided polyester sailmaker's whipping. 16mm reinforced playground rope hand rope. All with stainless steel eye bolts for easy installation. Recycled dressed ironbark posts.
OPTIONS
Various lengths available. Hand rope comes in a variety of colours. Purchase with posts and installation, or ropes only.
SPECIFICATIONS
- 16mm steel reinforced playground rope
- 3 strand manila rope
- Standard 3 meter span
- Eye bolts attached for easy installation
Attachment points
Chain Boss Fixtures
- Custom length M12 threaded rod
- Nylon lock cut, with plastic bolt covers provided
- Weld on variation available
- MBL = 3200kg
Fixtures
- Aluminium X connectors
- 4.8mm security torx screw
- Aluminium T connector
- Stainless steel thimbles
- All AS:4685 compliant
Playground Rope
16mm Steel Core Playground Rope
- UV stable Polyester fiber
- Highly abrasion resistant
- High strength, low stretch steel cable core
- Red, Tan, Blue, Black and Green available
